Why P1?
The Volvo P1 T5 platform represents one of the most underrated modern turbo performance foundations ever produced. Found in the Volvo C30, S40, and V50, the P1 T5 is built around Volvo’s legendary 2.5-liter inline-five turbocharged engine, combining durability, character, and real-world performance potential in a way few engines can match.
Inline 5 firing order & unique rumble
One of the most defining traits of the Volvo P1 T5 is its exhaust note. It’s deep, uneven, aggressive under load, and completely unlike the typical four-cylinder turbos and inline 6 cylinders. The inline-five configuration is the primary reason for its unique sound. With five cylinders sharing a single crankshaft, the engine fires unevenly causing those beautiful and distinct noises.
Focus Rs500
The Ford Focus RS500 stands as one of the strongest validations of the Volvo T5 engine architecture ever produced. Built during the Ford–Volvo partnership era, the RS500 used a heavily reworked version of Volvo’s 2.5-liter inline-five turbo platform, proving just how much performance headroom was engineered into the original design. The RS500 produced 345 hp and 339 lb-ft of torque, sent exclusively to the front wheels through a 6-speed manual transmission. At the time of release, this made it one of the most powerful production front-wheel-drive cars ever built.
C30 Polestar Concept Car
Volvo and Polestar further demonstrated the true performance ceiling of the T5 platform with the C30 Polestar concept, which pushed the 2.5-liter inline-five to approximately 450 horsepower. Achieving this required extensive motorsport-level development, including forged internals, a significantly larger turbocharger, upgraded fueling and cooling systems, and a reinforced AWD drivetrain. The concept wasn’t intended as a production car, but as a technical showcase—proving that the Volvo T5 architecture could reliably support power levels far beyond its factory rating when engineered correctly. It served as a clear statement that the limitations of the T5 were never the engine itself, but the supporting hardware around it.

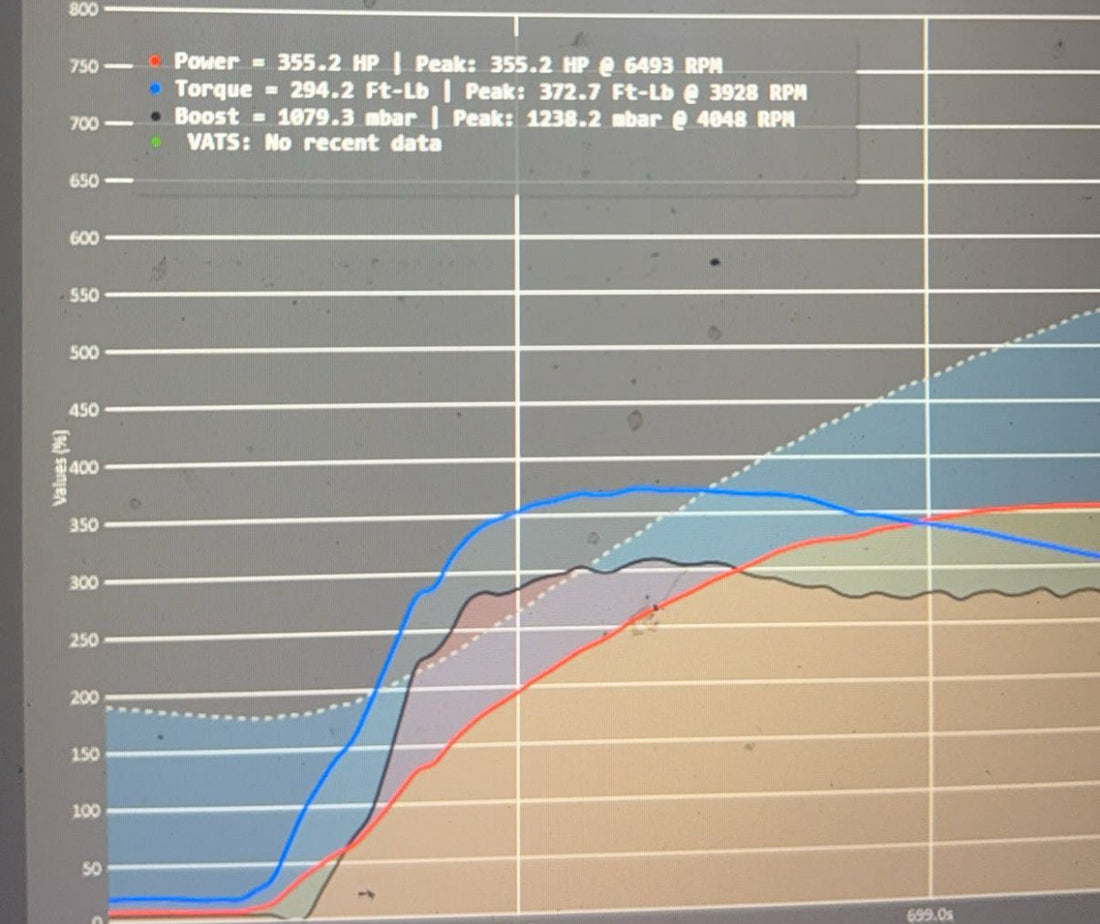

Power Potential and Limitations
In factory form, the P1 T5’s power ceiling is not defined by the engine itself, but by its supporting components and structural limits—most notably turbocharger airflow, exhaust backpressure, fueling capacity, charge-air cooling, and cylinder wall stability within the aluminum block at elevated boost levels. While the T5 uses a high-strength aluminum block with cast-in iron cylinder liners, sustained high boost and cylinder pressure can lead to liner movement, distortion, or cracking when factory tolerances are exceeded, particularly in higher-power or high-mileage applications. At Pro Xe Automotive, we address these limitations through a system-level approach: proper turbo sizing to control backpressure, optimized airflow and cooling to manage combustion temperatures, conservative torque management, and—when power targets demand it—the use of block shims and reinforcement strategies to improve liner support and cylinder stability under load. Our focus is not chasing peak dyno numbers, but delivering controlled, repeatable power that preserves ring seal, structural integrity, and long-term street reliability in high-output P1 T5 builds.
EFFICIENCY >
Many people assume that more horsepower automatically means more stress on the engine. In reality, it’s often the opposite when that power is made efficiently.
The factory K04 turbo has to work extremely hard to make 300+ BHP. As it approaches its limits, turbo shaft speed increases, backpressure rises, and exhaust gas temperatures (EGTs) climb. This creates more heat and stress throughout the engine.
Our hybrid turbos are designed to move more air with less restriction. Because the turbo is operating in a more efficient range, it can often make more power while generating less heat and backpressure.
Benefits include:
- Lower exhaust gas temperatures (EGTs)
- Reduced backpressure
- Lower turbo shaft speeds
- Less boost required for a given power level
- Reduced cylinder pressure
- Improved top-end power
Lower cylinder pressure means less stress on the cylinder walls, pistons, rings, rods, and head gasket.
On Volvo’s aluminum whiteblock engines, reliability is often determined more by heat management than a specific horsepower number. Excessive heat causes the open-deck cylinder walls and liners to expand and contract, eventually leading to distortion, cracking, or liner issues.
While block shims help support the liners, they cannot prevent damage caused by excessive heat. Proper oil cooling, intercooling, coolant flow, and efficient turbocharger operation are just as important.
By reducing backpressure and lowering EGTs, our hybrid turbos help keep temperatures under control while producing more power. The result is a more efficient engine, less thermal stress, and a safer path to higher horsepower.
The Bottom Line
A stock turbo making 320 BHP is often working harder than a Pro Xe Hybrid Turbo making 370 BHP.
More airflow. Less boost. Less heat. Less stress.
P1 Volvo T5 Power Ladder
This is just reference, no power outputs are guaranteed. It is based on hardware, tune and vehicle health and many other factors
260–300 HP — Factory Plus
Purpose: Reliable OEM+ performance
Recommended Components:
- ECU tune (required)
- Stage 0
- Intercooler
- Intake & exhaust
- Down pipe
300–320 HP — Optimized Bolt-On Performance
Purpose: Strong daily-driven street car
Required Components:
- Front-mount intercooler
- Intake & Exhaust
- Down pipe
- ECU Tune
- Proper Boost Control
Recommended:
- Block shims for added cylinder liner support
- Oil Cooler
- Injectors
330–400 HP — Cylinder Wall Liner Limit
Purpose: Aggressive street performance
Required Components:
- Upgraded injectors
- High-flow intake, down pipe & exhaust
- Custom ECU calibration
- Block Shims
- Upgraded/Hybrid Turbo
Recommended:
- Clutch upgrade ~ M66
- Shift Solenoid Upgrade ~ Aw55
400–480 HP — Upper limit of the Stock Block
Purpose: High-power street / street-strip builds
Required Components:
- Block shims / liner support (required)
- Clutch upgrade
- Upgraded fuel pump & injectors
- K16 Turbo or equivalent
Recommended:
- Forged Internals
- AW55 Automatic not recommended at this power level unless torque is managed very well.
500+ HP — Fully Built & Reinforced Platform
Required Components:
- Fully built engine (forged pistons & rods)
- Block shims / liner reinforcement
- K16 hybrid or Large-frame turbo (GTX30-class or larger)
- Advanced intercooling & oil cooling
- Custom calibration with strict torque and thermal management

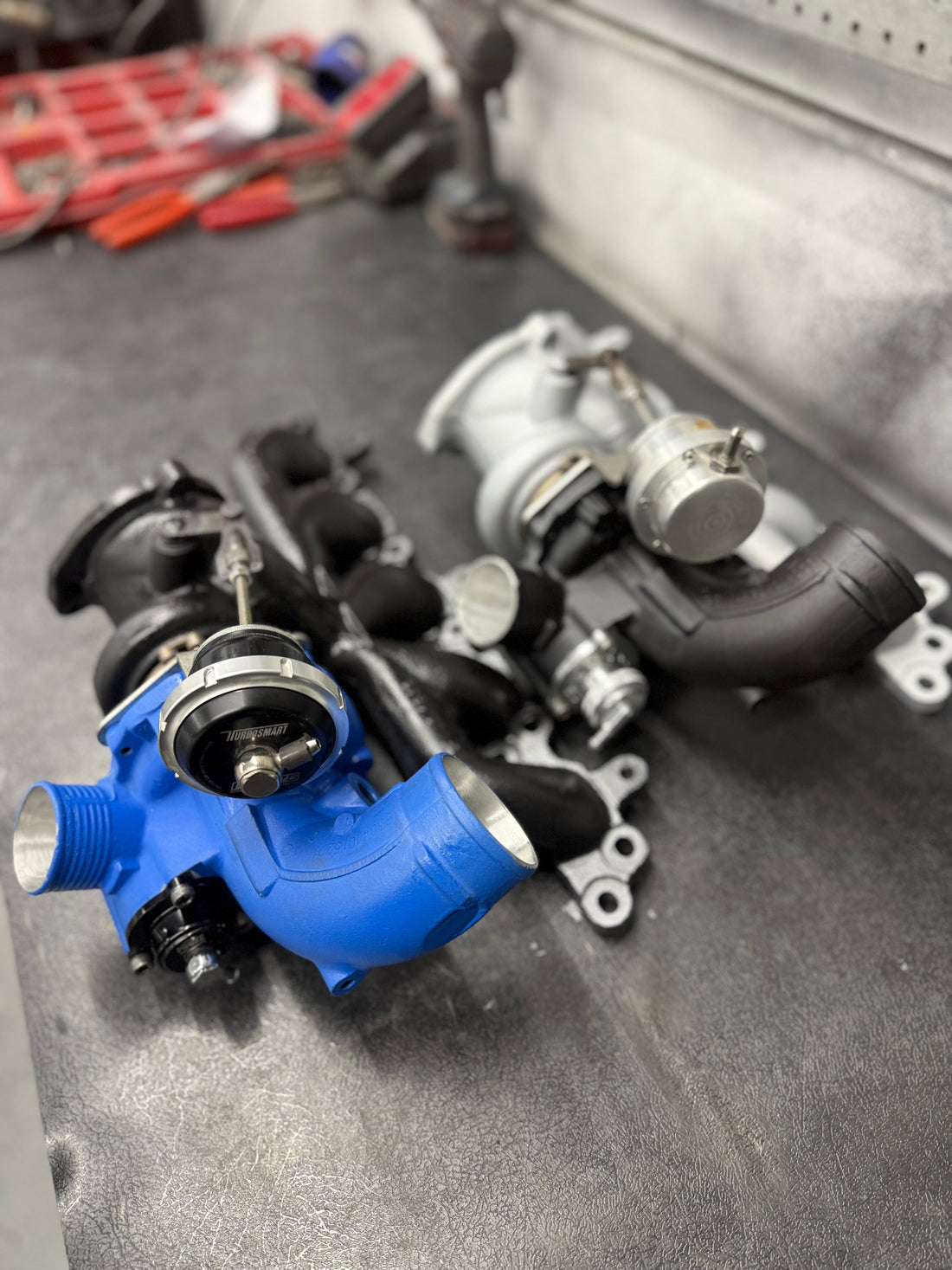

Choosing The Right Turbo
One of the biggest misconceptions when choosing a turbo is, upgrading to a larger turbo automatically means more usable power. In reality, turbo selection is about matching airflow, response, and efficiency to the engine, ECU logic, and intended use of the car.
A well-matched turbo will:
• Spool faster
• Hold power more consistently
• Produce less heat

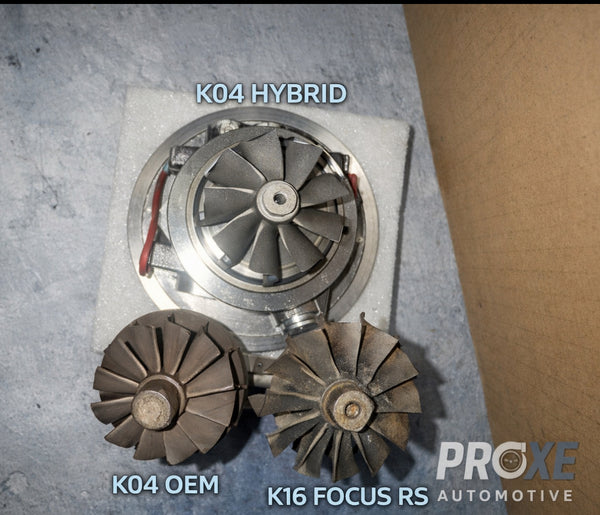

Why a Hybrid K04 Often Beats a K16 on the Street
On paper, the K16 looks like the obvious upgrade. Larger wheels, higher airflow potential, higher peak numbers. But in real-world P1 applications, that extra capacity often goes unused or becomes a liability.
Hybrid K04 advantages:
• Faster spool and earlier torque
• Higher turbine efficiency in the stock housing
• Better transient response
• Lower exhaust backpressure
• More consistent power pull-to-pull
• Less heat soak
A K16 only starts to make sense when the engine can actually use the additional airflow — which usually requires higher boost targets, aggressive tuning, and supporting mods that push the limits of rods, transmissions, and cooling.
For most street-driven P1 cars, the limiting factor isn’t peak airflow — it’s usable airflow within safe operating windows.

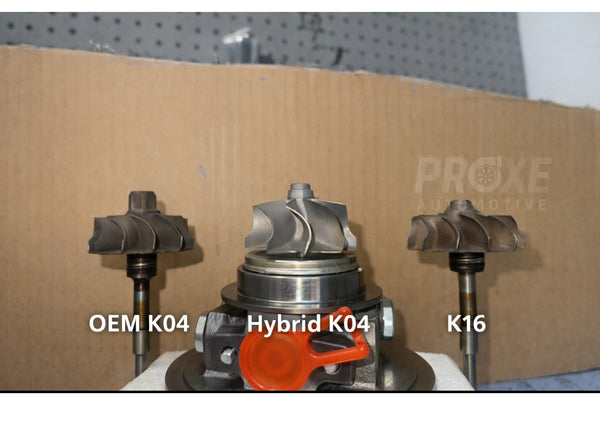

Wheel Geometry: Why the Shape Matters More Than the Size
Turbo performance isn’t just about diameter. Blade geometry, depth, count, and hub design all play a major role in how efficiently the turbo converts exhaust energy into boost.

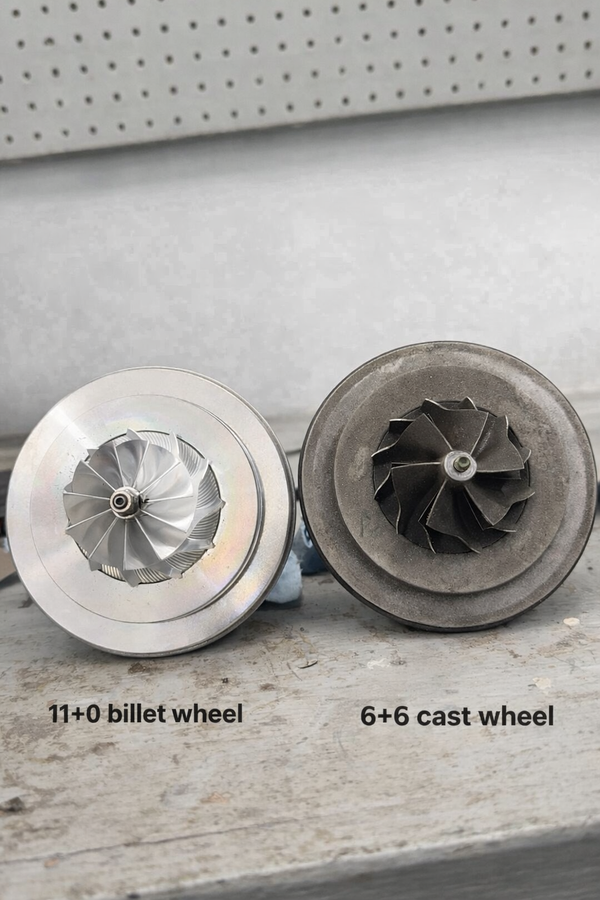

Compressor wheel geometry plays a major role in how a turbo spools and makes power, not just wheel size.
On the P1 platform, the turbine and housing choke first. Back Pressure rises rapidly, and shaft speed is effectively capped ~105,000 RPM, long before an 11+0 compressor becomes a restriction.
That’s why the “11+0 hurts top end” argument doesn’t apply here.
The 7+7 is often seen as the better top-end blade, but on P1 cars the 11+0 offers a broader, more usable efficiency range, delivering stronger response, smoother power, and more consistent performance where these cars actually operate.
Borg Warner K04-K16 Cross Compatibility

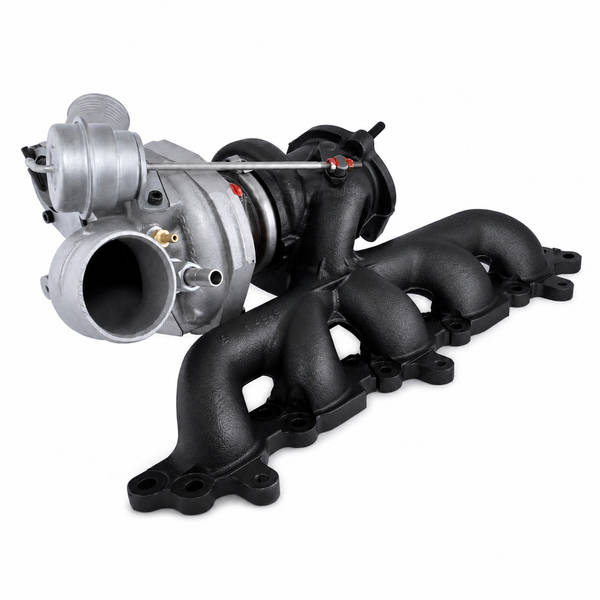

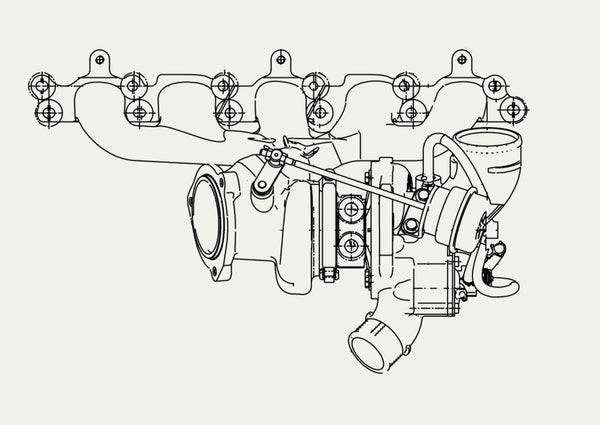

When Volvo developed its next generation of turbocharged five and six-cylinder engines, it partnered with BorgWarner to create a family of manifold-integrated turbochargers designed to deliver exceptional transient response, compact packaging, and OEM-level durability.
Rather than designing completely unrelated turbochargers for every engine, BorgWarner evolved a common integrated-manifold architecture across multiple applications, scaling airflow and turbine capacity to match each platform’s performance goals.
THE K04 FAMILY
The most well-known member of this family is the BorgWarner K04-033.
This turbocharger was used on the Volvo P1 T5 platform, including:
• Volvo C30 T5
• Volvo S40 T5
• Volvo V50 T5
• Volvo C70 T5
The same K04-033 architecture was also utilized on Ford’s turbocharged 2.5L five-cylinder applications, including the Focus ST225.
As development continued, Ford pushed the K04 platform even further with the Focus RS305. Despite producing over 300 horsepower from the factory, the RS305 remained based on the K04-033 integrated manifold turbocharger design.

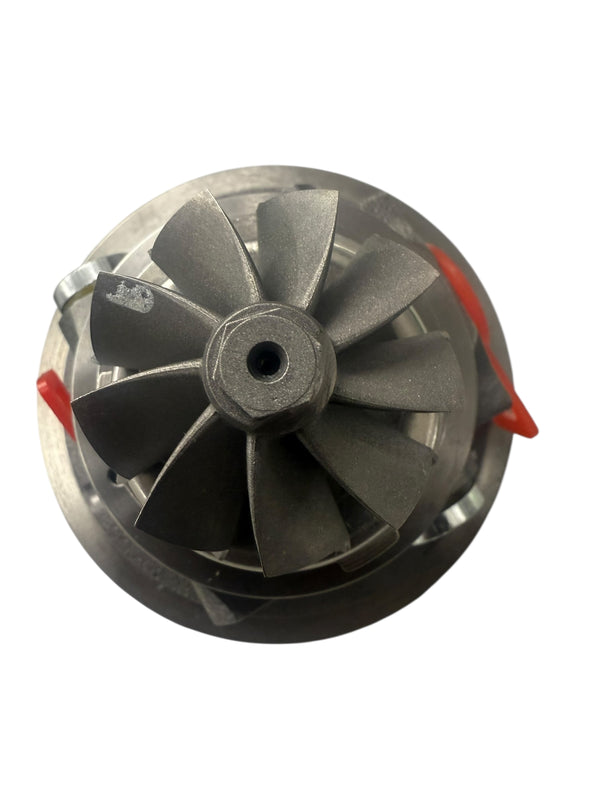

This demonstrates just how capable the K04 platform can be when paired with proper calibration, airflow improvements, and supporting hardware.One of the most interesting aspects of the BorgWarner K04 family is the level of interchangeability between seemingly unrelated applications.
The Audi K04-064, Saab K04-200, and GM K04-059 utilize the same core CHRA architecture and are directly cross-compatible at the cartridge level. Complete CHRA assemblies can be interchanged between these turbochargers, making Audi K04-064 cartridges an attractive option for Saab and GM owners due to their widespread availability and aftermarket support.
The Volvo K04-033 shares much of this same BorgWarner DNA. While the complete CHRA assembly is not a direct swap due to differences in the oil drain configuration and housing design, the internal rotating assembly components—including the compressor wheel, turbine wheel, shaft assembly, bearings, thrust components, and sealing hardware—are interchangeable between platforms.
This means many of the performance components developed for the Audi K04-064 can be successfully utilized in Volvo K04-033 hybrid turbocharger builds. For Volvo enthusiasts, this effectively opens access to one of the largest K04 aftermarket ecosystems in the world, greatly expanding upgrade possibilities beyond what was originally available for the platform.
Although the housings and mounting arrangements differ between Volvo, Audi, Saab, and GM applications, the shared BorgWarner engineering found within these turbochargers highlights just how closely related these K04 variants truly are beneath the surface.
THE RS500 & THE NEXT STEP
The Focus RS500 represented the ultimate factory evolution of the turbocharged Duratec/RNC-RS platform.
While the ST225 and RS305 remained within the traditional K04 family, the RS500 moved toward the larger BorgWarner K16 architecture, allowing substantially greater airflow and horsepower potential.
This larger-frame design would later become highly relevant to Volvo enthusiasts due to its connection to the SI6 T6 turbocharger family.
THE K16-2480
As Volvo transitioned to the SI6 3.0L inline-six engine used in the S80 T6, XC60 T6, XC70 T6, and later S60 T6 models, BorgWarner developed the K16-2480.
According to BorgWarner documentation, the K16-2480 was designed to support approximately 370 peak horsepower while maintaining the excellent transient response Volvo demanded from its turbocharged engines.
Applications included:
• Volvo S80 T6
• Volvo XC60 T6
• Volvo XC70 T6
• Volvo S60 T6

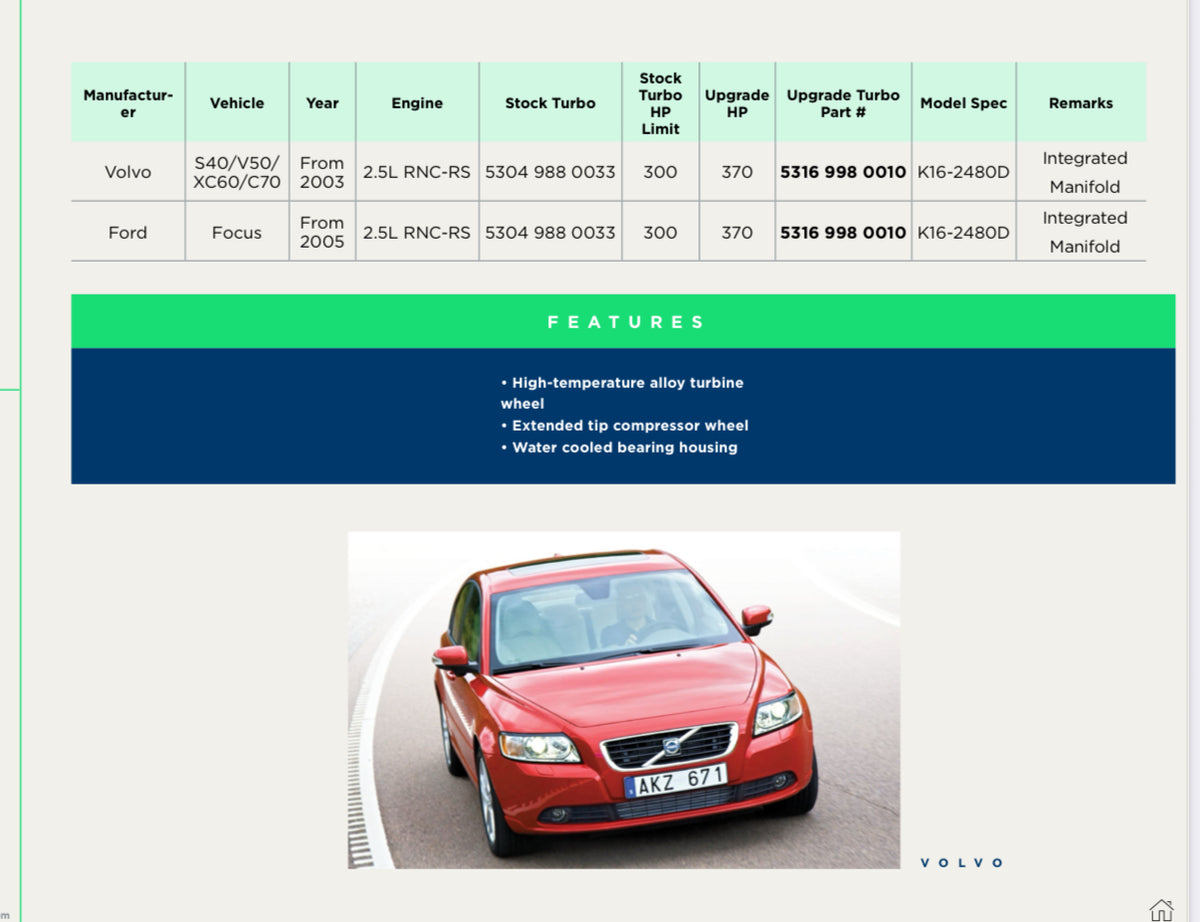

THE K16 CONNECTION
An interesting detail within the BorgWarner K16 family is the relationship between the 5316-998-0010 cartridge used in the Focus RS K16 applications and the 5316-998-0018 cartridge found in Volvo’s SI6 3.0 T6 turbocharger. While the T6 S16T utilizes a completely different integrated manifold and turbine housing assembly designed specifically for the six-cylinder engine, both turbochargers share the same core K16 architecture and many internal rotating assembly components. This common BorgWarner lineage is one of the reasons components and cartridge designs often cross-reference between RS and T6 applications.
Understanding these relationships helps explain why so many BorgWarner components interchange between applications and why modern hybrid turbo development can successfully combine parts from multiple BorgWarner platforms to create turbochargers that far exceed their original factory performance targets.

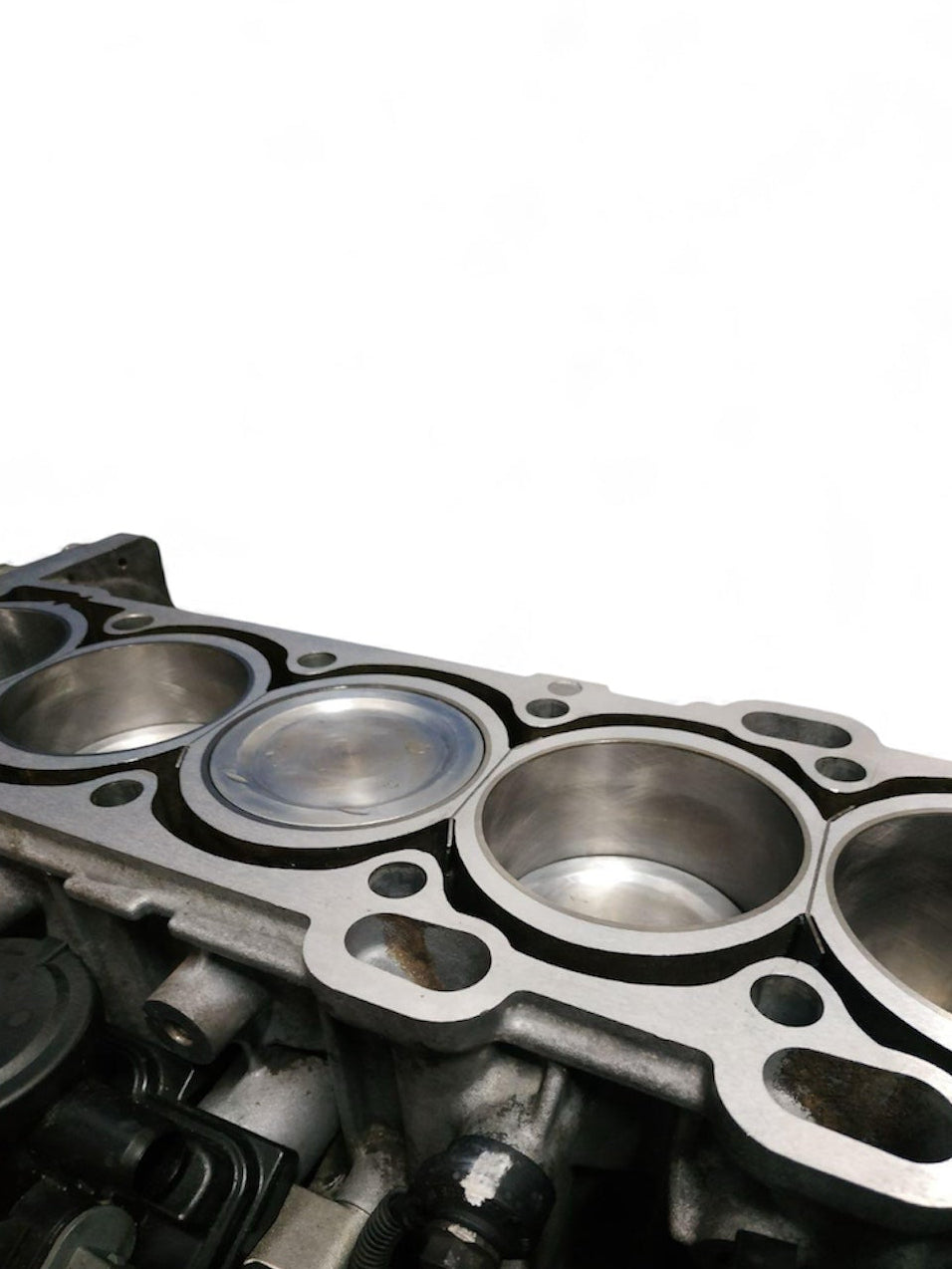

Stage 0
Addressing Common Volvo P1 Failure Points Before Modding
Before adding power to any Volvo P1 platform, it’s critical to address known weak points that directly affect reliability under boost. Many failures blamed on tuning are actually the result of neglected maintenance that only becomes obvious once load, heat, and cylinder pressure increase.
Crankcase Pressure, Heat, and Engine Survival
One of the most common issues on P1 cars is a torn PCV diaphragm, which often presents as a loud whistling noise, unstable idle, oil consumption, and inconsistent boost control. Left unresolved, improper crankcase ventilation increases internal pressure and oil contamination, especially under boost. Heat management is another major concern, as elevated oil and coolant temperatures contribute to cylinder wall distortion and cracking on these engines when pushed hard. Supporting upgrades such as an efficient radiator, an external oil cooler, and block shims help stabilize temperatures and reduce bore stress before power is increased.

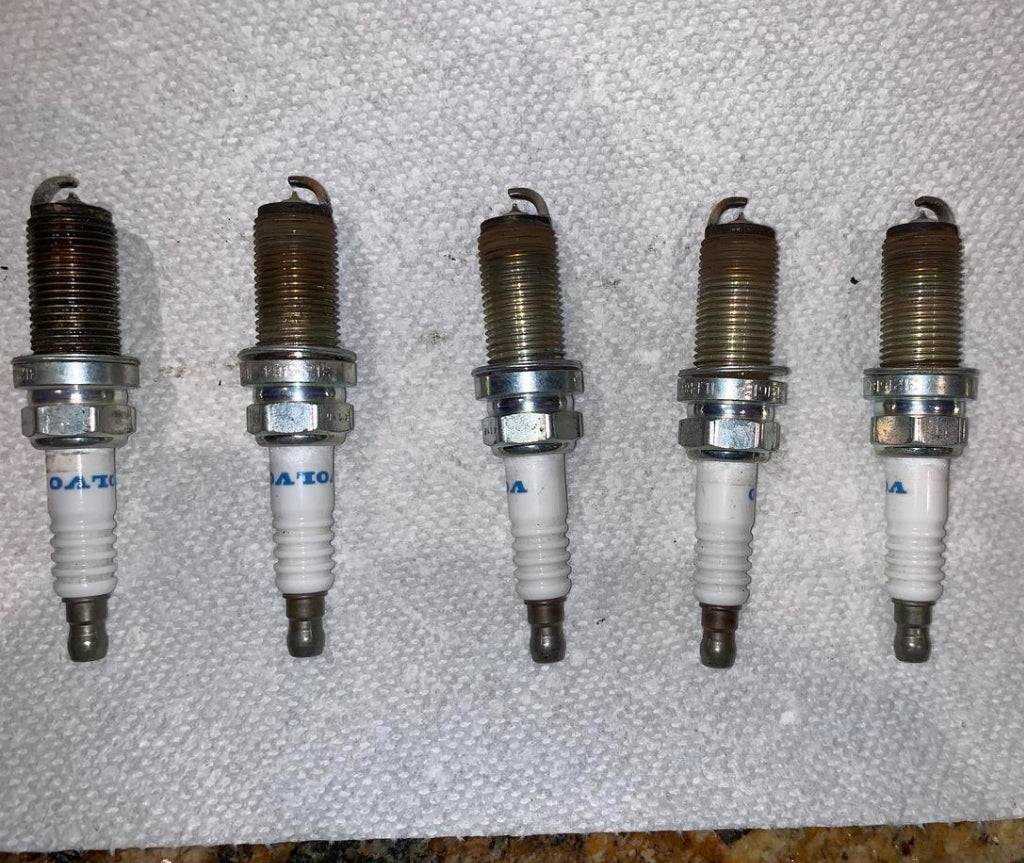

Ignition, Timing, and Supporting Maintenance
A healthy ignition system is essential on turbocharged P1 cars. Aging ignition coils and improperly gapped or worn spark plugs often lead to misfires under load, knock correction, and inconsistent power delivery. Timing belt service is equally non-negotiable—adding boost to an engine with overdue timing components risks catastrophic failure. These items should be treated as baseline requirements, not optional upgrades.
Cooling System and Drivetrain Considerations
Many P1 cars are still running original rubber hoses and plastic cooling components, which become brittle with age and frequently fail once operating temperatures increase. Replacing these parts during Stage 0 prevents avoidable coolant loss and overheating. On M66 manual-transmission cars, failing clutch master cylinders are a common source of hesitation or delayed engagement during quick shifts, an issue that becomes more pronounced as torque rises and can be misinterpreted as a tuning or driveline problem.
The Goal of Stage 0
Stage 0 isn’t about making more power—it’s about creating a stable, predictable platform where tuning works as intended. Addressing these known issues first results in smoother power delivery, lower mechanical stress, and performance gains that last, rather than short-term results that lead to failure.
Tuning
A proper tune is one of the most effective upgrades for a stock Volvo P1, as it optimizes factory boost control, fueling, ignition timing, and torque management without changing hardware. On an otherwise stock car, a quality calibration can significantly improve throttle response, midrange power, and drivability while keeping factory safety systems intact. Rather than simply increasing boost, a well-developed tune reshapes how power is delivered, smoothing out torque, reducing hesitation, and making the car feel more responsive and refined in everyday driving. When done correctly on a healthy Stage 0 car, tuning unlocks performance that the factory left on the table without sacrificing reliability.
Understanding the ME9 ECU
One of the most misunderstood components of the Volvo P1 performance ecosystem is the Bosch ME9 engine management system. Unlike older boost-target or speed-density ECUs, the ME9 operates on a torque-based control strategy, which fundamentally changes how power is made, limited, and managed.
The ME9 does not directly target boost pressure. Instead, it calculates engine load primarily through MAF airflow, then references a series of nominal torque models to determine how much torque the engine should be allowed to produce under given conditions. A perfect example of this came from a customer running a well-known off-the-shelf tune on a stock K04. On that setup, the car required ~16 psi of boost to reach its torque and power targets.
After installing a PRO XE HYBRID, the tune itself was left unchanged.
The result?
- Only ~10 additional peak horsepower
- But achieved at just ~7 psi of boost
That’s not a tuning failure — it’s a textbook ME9 success.
Tuning Culture
The Volvo P1 and Ford Focus Mk2 share the same 2.5-liter turbo five-cylinder platform, but the tuning cultures around them are very different. The P1 Volvo community has traditionally stayed conservative, focusing on mild bolt-ons and early torque, while the Focus Mk2 community—especially in the UK—has pushed the platform much harder with stronger internals, better cooling, and airflow-focused setups. That difference in mindset, not the engine itself, is why the Focus scene has uncovered more of the platform’s true performance potential.
