Stage 0: Addressing Common Volvo P1 Failure Points Before Modding
Before adding power to any Volvo P1 platform, it’s critical to address the known weak points that directly affect reliability under boost. Many failures blamed on aggressive tuning are actually the result of neglected maintenance that only becomes apparent once cylinder pressure, airflow, and operating temperatures increase.
A properly completed Stage 0 provides a solid foundation for every modification that follows. Whether your goal is a mild daily driver or a 500+ horsepower build, starting with a healthy engine will always produce better performance and greater reliability than adding power to a neglected one.
Crankcase Ventilation, Turbocharger Health, and Engine Survival
One of the most common issues on the Volvo P1 platform is a failed PCV diaphragm. Symptoms typically include a loud whistling noise, rough or unstable idle, excessive oil consumption, oil residue around the engine, and inconsistent boost control.
What many owners don’t realize is that a failed PCV system can also mimic the symptoms of a failing turbocharger.
When crankcase pressure cannot be properly evacuated, pressure builds inside the engine and forces oil past the turbocharger’s bearing seals. This often results in blue exhaust smoke, oil in the charge piping, increased oil consumption, and compressor or turbine housing contamination. Because these symptoms closely resemble worn turbo seals, many perfectly healthy turbochargers are replaced unnecessarily when the real culprit is excessive crankcase pressure.
Beyond turbocharger health, excessive crankcase pressure contaminates engine oil, reduces ring sealing efficiency, increases blow-by, and places additional stress on engine seals and gaskets. Addressing PCV issues before increasing boost is one of the simplest and most important reliability upgrades for any P1.
Heat Management, Cylinder Walls, and Block Shims
Heat is one of the biggest enemies of the Volvo whiteblock engine.
As boost pressure increases, combustion temperatures rise significantly, transferring more heat into the aluminum block and cylinder walls. The open-deck design used in the P1 engines leaves the upper portion of each cylinder with relatively little support, allowing the cylinder walls to flex under high cylinder pressure.
Over time, repeated heat cycling combined with elevated combustion pressure can contribute to cylinder wall distortion and, in more severe cases, cracked cylinder walls or cracked engine blocks. These failures are far more common on engines that experience excessive torque spikes, poor cooling, or sustained high boost.
This is where block shims become an important reliability upgrade.

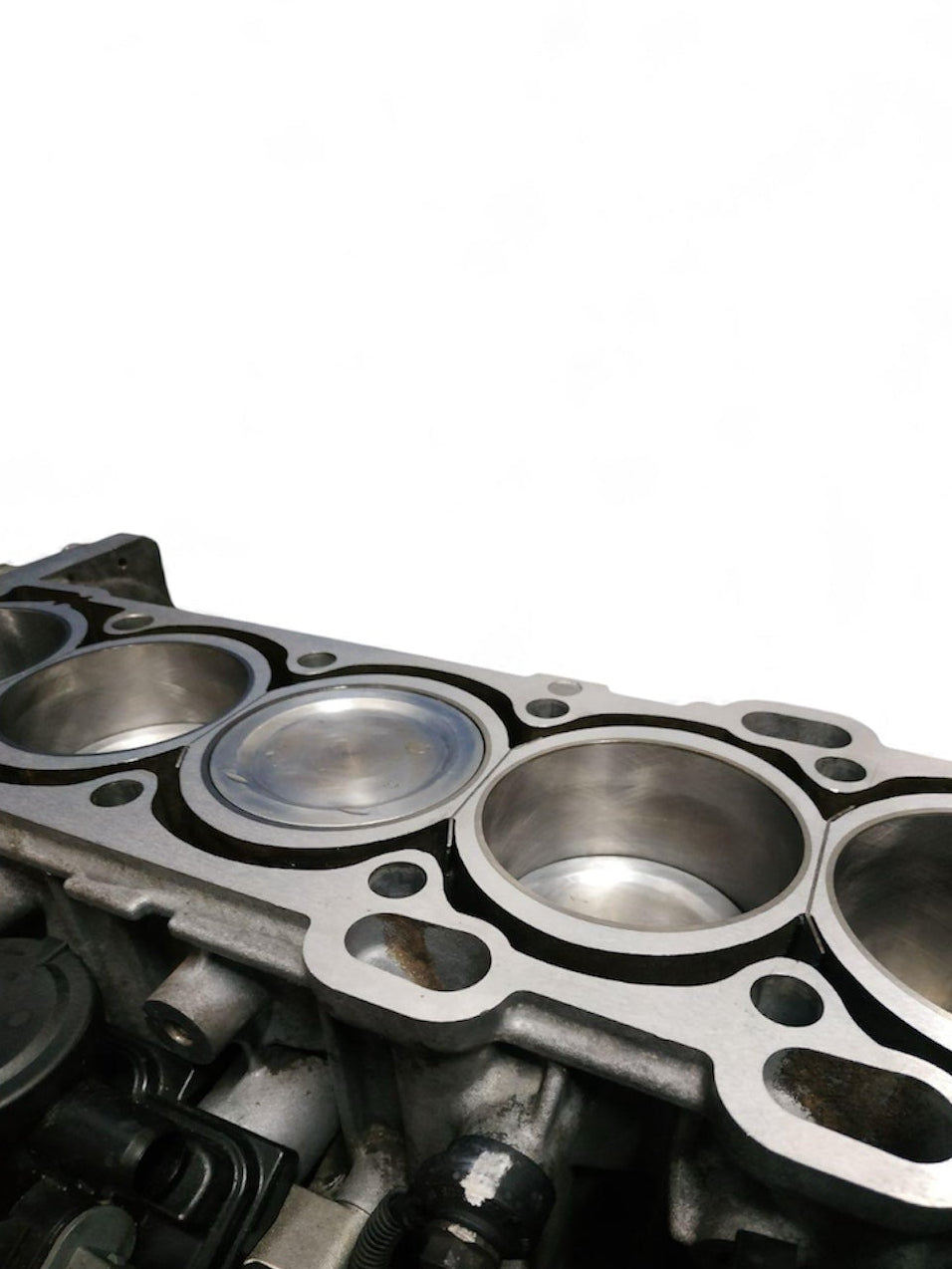

Block shims reinforce the upper portion of the cylinders by filling the gap between the cylinder walls and the engine block, significantly reducing bore movement during combustion. By limiting cylinder flex, block shims help maintain a more consistent head gasket seal, improve cylinder stability, and reduce the likelihood of cracked cylinder walls on higher-output engines.
While block shims are not a substitute for proper tuning or cooling, they have become one of the most effective preventative upgrades for enthusiasts planning to exceed roughly 350 horsepower or significantly increase cylinder pressure.
Supporting modifications such as a larger radiator, quality coolant, properly functioning thermostat, and an external oil cooler further reduce thermal stress by keeping both coolant and engine oil temperatures under control during spirited driving and track use.
Ignition, Timing, and Supporting Maintenance
A healthy ignition system is essential on turbocharged P1 cars.
Aging ignition coils, improperly gapped spark plugs, worn plugs, or poor electrical connections frequently cause misfires under boost, knock correction, inconsistent power delivery, and reduced engine performance. Many tuning issues are ultimately traced back to simple ignition system problems.
Timing belt service is equally critical.
Increasing boost on an engine with overdue timing components places the entire engine at unnecessary risk. A failed timing belt, tensioner, or idler pulley can result in catastrophic valve-to-piston contact regardless of how well the engine is tuned.
These items should always be considered baseline maintenance before pursuing additional power.
Cooling System and Drivetrain Considerations
Many Volvo P1 vehicles are now well over a decade old and still rely on their original plastic cooling components, rubber hoses, expansion tanks, and thermostat housings.
As these components age, they become brittle and increasingly prone to failure, especially once additional heat is introduced through higher boost levels. Replacing worn cooling components during Stage 0 dramatically reduces the risk of overheating and coolant loss later.
On M66-equipped vehicles, failing clutch master cylinders are another common issue. Drivers often notice delayed clutch engagement, inconsistent pedal feel, or hesitation during quick gear changes. As engine torque increases, these symptoms become even more noticeable and are frequently mistaken for clutch or tuning problems when the hydraulic system is actually at fault.
The Goal of Stage 0
Stage 0 isn’t about making more horsepower.
It’s about ensuring every system on the vehicle is healthy enough to support future modifications safely and reliably.
Completing Stage 0 means your engine can control crankcase pressure correctly, maintain stable operating temperatures, deliver consistent ignition performance, and withstand the increased cylinder pressures that come with higher boost levels.
The result is smoother power delivery, better tuning consistency, longer engine life, improved turbocharger reliability, and significantly lower risk of expensive failures.
Every successful Volvo P1 build starts with the same philosophy:
Fix what’s weak before making it stronger.
