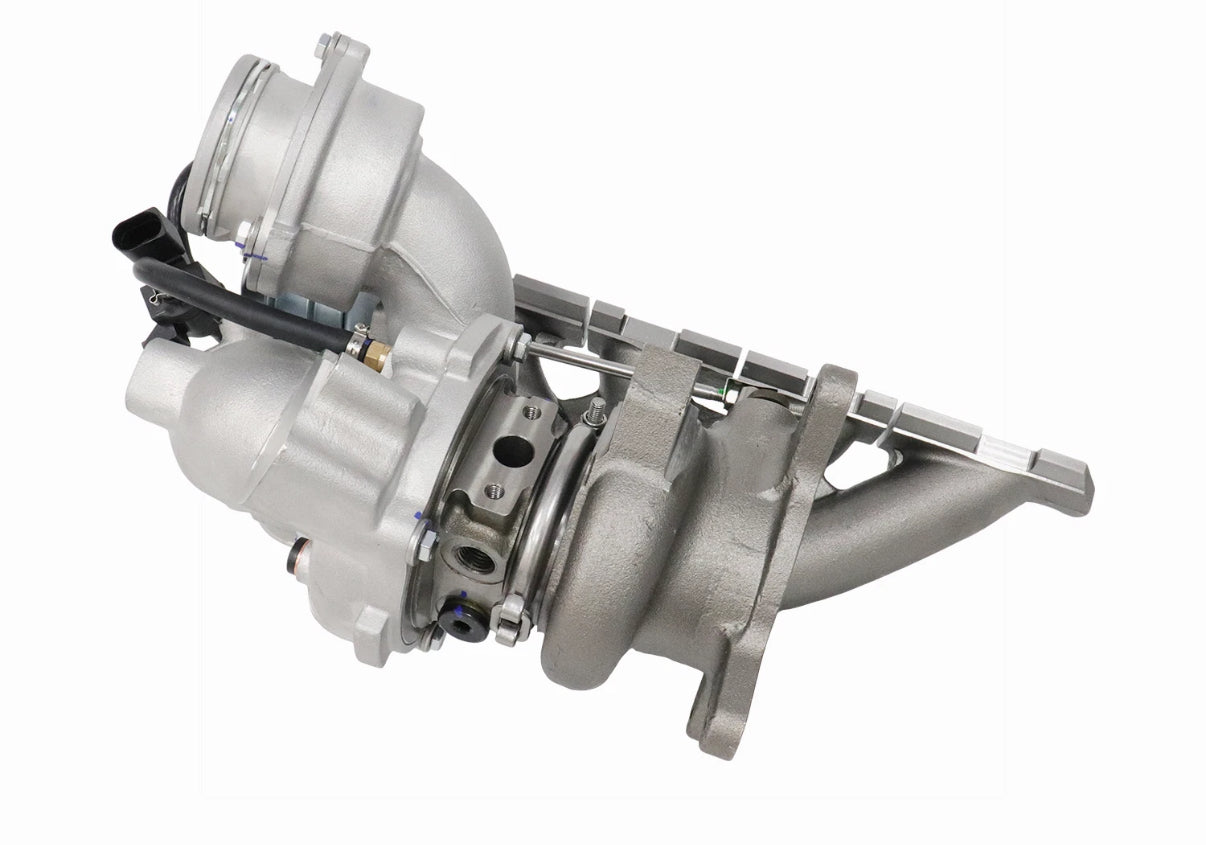

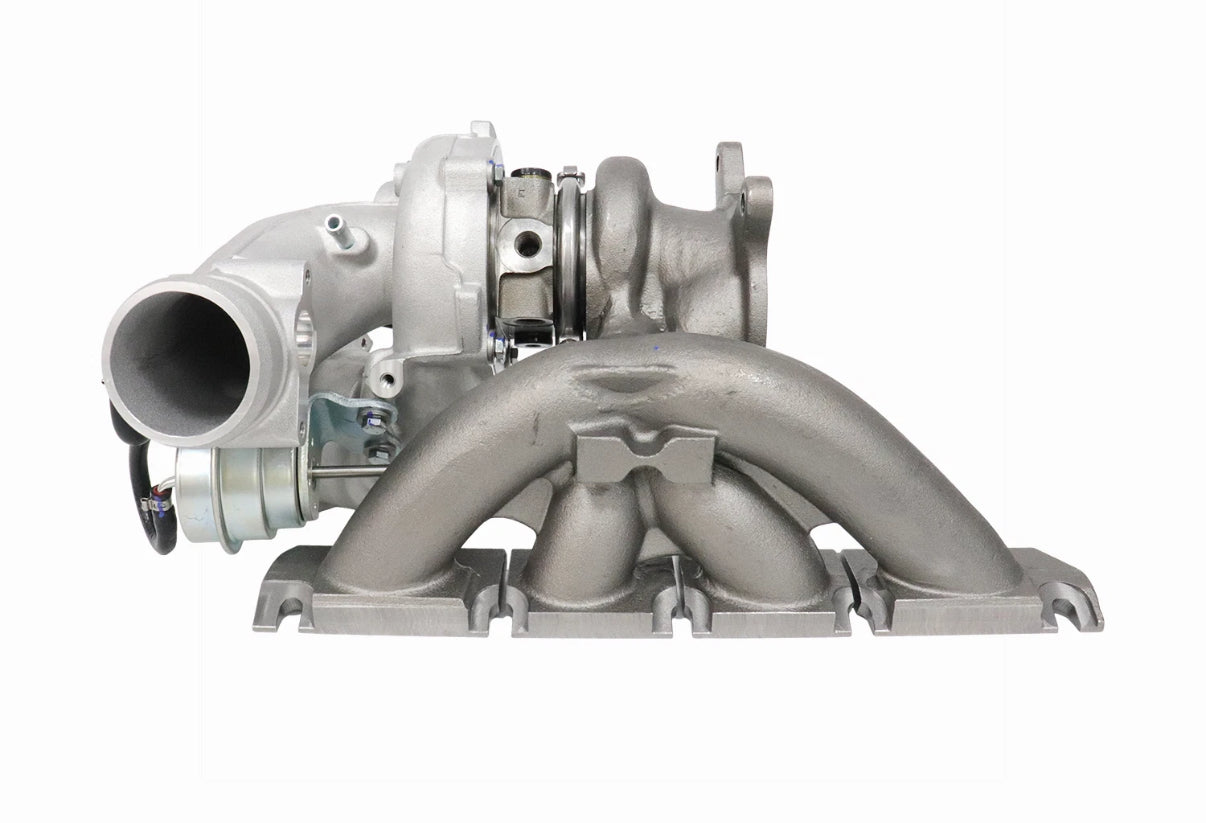

Pro Xe K04-064XXL Ball Bearing Audi S3 TT 2.0t Hybrid Turbo Upgrade

PRO XE STAGE 3 BALL BEARING HYBRID TURBO

The Pro Xe Stage 3 Ball Bearing Hybrid Turbo is the flagship K04-064 hybrid turbocharger in the Pro Xe lineup, engineered for enthusiasts seeking the absolute maximum performance from the factory K04 footprint.

Developed without compromise, the Stage 3 combines an all-new dual ceramic ball bearing center housing with our largest compressor and turbine package, delivering exceptional transient response, reduced friction, increased reliability under extreme shaft speeds, and the highest airflow capability of any Pro Xe K04-064 hybrid.

Unlike conventional journal bearing hybrids, the dual ball bearing CHRA significantly reduces rotating friction, allowing the turbocharger to spool faster, recover boost more quickly between shifts, and remain stable at elevated boost pressures and shaft speeds. Combined with extensive compressor and turbine housing development, the Stage 3 offers outstanding drivability without sacrificing top-end performance.

HOW IS IT UPGRADED?

Every Stage 3 Hybrid Turbo is completely disassembled, precision machined, and assembled using premium components throughout.

Each unit features:

• Dual ceramic ball bearing CHRA
• Fully machined and aggressively ported compressor housing
• Fully machined and aggressively ported turbine housing
• Enlarged turbine volute and throat area
• Maximum wastegate and outlet porting
• Oversized billet extended tip compressor wheel
• Oversized clipped cutback turbine wheel
• High-strength nickel-chromium turbine alloy
• OEM electronic wastegate calibrated and installed
• New seals, hardware, and premium internal components

The ball bearing center section reduces friction by eliminating conventional journal bearings, improving transient response, reducing spool time, and enhancing durability under sustained high boost. Combined with the oversized compressor and turbine package, the Stage 3 delivers exceptional airflow while maintaining excellent efficiency throughout the operating range.

Every turbocharger is VSR balanced to 150,000 RPM and thoroughly tested prior to shipment.

TURBOCHARGER SPECIFICATIONS

Compressor Wheel

• Oversized Extended Tip 9+0 Billet Compressor
• 7075-T6 Billet Aluminum

Turbine Wheel

• Oversized 9 blade Clipped Cutback Turbine Wheel
• High-Temperature Nickel-Chromium Superalloy

CHRA

• Dual Ceramic Ball Bearing Cartridge
• High-Speed VSR Balanced to 150,000 RPM

Housing Modifications

• Fully Ported Compressor Housing
• Aggressively Ported Turbine Housing
• Enlarged Turbine Volute
• Enlarged Turbine Throat
• Maximum Wastegate Porting
• Maximum Outlet Porting
• Optimized Internal Flow Paths

INCLUDED COMPONENTS

• Complete Ball Bearing Hybrid Turbocharger
• Electronic Wastegate Calibrated and Installed

FLOW CAPABILITY

• Approximately 58-60+ lb/min
• Efficient Operating Range: 26-36 PSI

POWER POTENTIAL

Supporting modifications and ECU calibration dependent.

93 Octane

• 550+ BHP

Ethanol Blends

• 620+ BHP

RECOMMENDED SUPPORTING MODIFICATIONS

• Custom ECU Calibration
• Complete High-Pressure Fueling Upgrade
• Upgraded Low-Pressure Fuel Pump
• Large Front Mount Intercooler
• High-Flow Intake System
• 3.5” Intake Recommended
• High-Flow Downpipe
• Upgraded Charge Pipes
• Built Engine Recommended Above 600 BHP
• Performance Clutch or Performance DSG Calibration

COMPATIBILITY

The Pro Xe K04 Hybrid Turbo is designed around the BorgWarner K04-064 platform and is compatible with both factory K04-equipped vehicles and many K03-equipped EA113 applications when installed with the appropriate supporting hardware and ECU calibration.

Factory K04-064 Applications (Direct Replacement)

Audi

• S3 8P (2.0 TFSI EA113)
• TTS 8J (2.0 TFSI EA113)

Volkswagen

• Golf R Mk6 (2.0 TSI EA113)
• Scirocco R
• Golf GTI Edition 30
• Golf GTI Pirelli Edition

SEAT

• Leon Cupra
• Leon Cupra R

K03 to K04 Upgrade Applications

The Pro Xe K04 Hybrid is also compatible with many EA113 vehicles originally equipped with a K03 turbocharger when paired with the appropriate K04 conversion hardware, fueling upgrades, and ECU calibration.

Audi

• A3 8P 2.0T FSI
• TT 8J 2.0T FSI
• A4 B7 2.0T FSI (Longitudinal version requires the appropriate longitudinal K04 configuration)

Volkswagen

• Golf GTI Mk5 (EA113)
• Jetta GLI Mk5
• Eos 2.0T
• Passat B6 2.0T

Notes

• Direct bolt-on replacement for factory K04-064 equipped vehicles.
• K03-equipped vehicles require supporting conversion components and custom ECU calibration.
• If you are unsure of your vehicle’s turbocharger or engine code, contact Pro Xe Automotive prior to ordering and we will verify compatibility.

CORE INSPECTION POLICY

Customers wishing to have their existing turbocharger rebuilt or upgraded must contact Pro Xe Automotive before placing an order.

All customer-supplied turbochargers are inspected prior to approval for rebuilding or upgrading. Once approved, applicable core refunds will be processed following inspection.

WARRANTY

18 Month Warranty

Coverage Includes

• Turbocharger assembly defects
• Ball bearing CHRA defects
• Internal balancing and machining workmanship

Warranty Exclusions

• Improper installation
• Oil starvation or contamination
• Foreign object damage
• Improper tuning
• Overspeed or overboost conditions
• Third-party modifications or repairs

If a warrantable defect is confirmed, Pro Xe Automotive will repair or replace the turbocharger at our discretion.

LEAD TIME

Typical production time is approximately 7-10 business days. Contact Pro Xe Automotive for current lead times.
